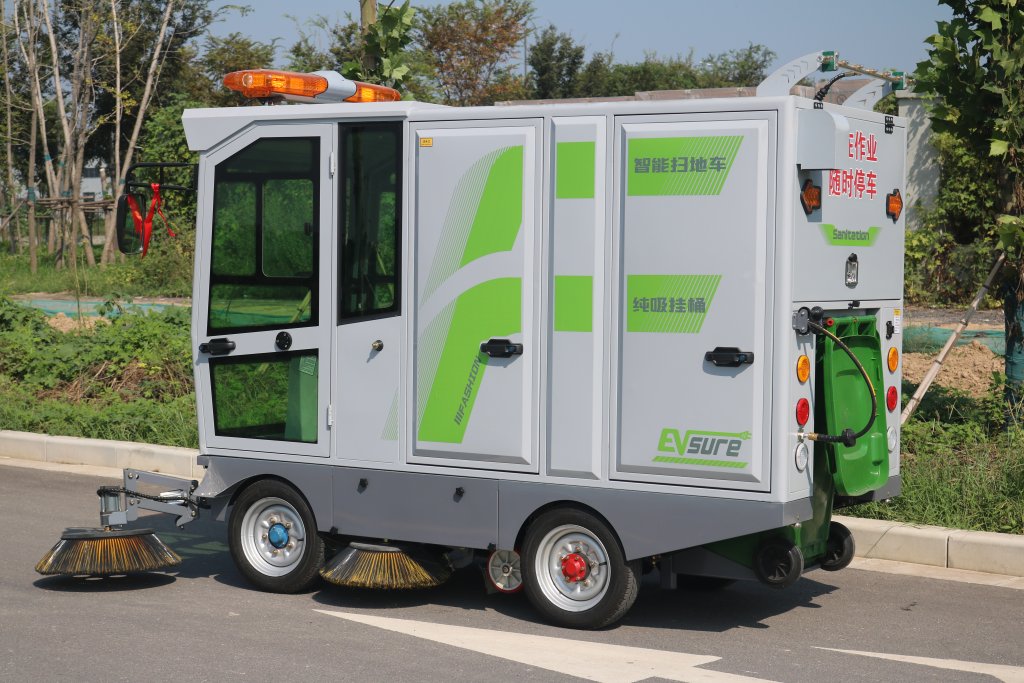

Product features of G25AT leaf suction sweeper:
Made from high-strength steel, offering high strength and load-bearing capacity, with electrocoating for rust prevention and corrosion resistance; Body: Fully enclosed cab, three-sided full glass transparency, premium high-strength metal body, providing excellent working visibility and an attractive appearance.
Drive: Electric differential rear axle drive, with a continuously variable transmission.
배터리: Equipped with a high-capacity lithium iron phosphate battery pack dedicated to the sweeper

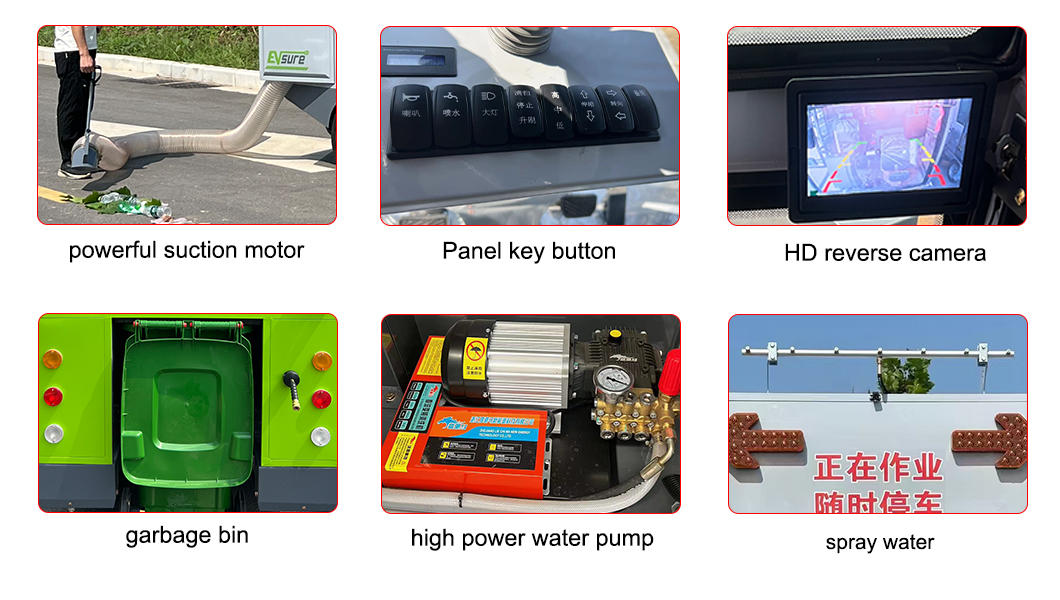

Cleaning System: Pure suction type, featuring a "four-sided brush + central 800mm suction cup" layout, with a 4-meter detachable handheld suction tube, ensuring high suction efficiency and fast operation., Side Brush System: The front side brush can extend and retract left and right, allowing free movement and enhancing vehicle maneuverability; dual-direction super anti-collision design effectively protects the side brush motor and reduces damage to the front side brush mechanism.
* Equipped with anti-slope function.
Four-wheeled vacuum tires 135/70R12; rear 240L standard bucket; two large filter cores in 500+350 specifications for dust control system, making cleaning easier and more effective, the vehicle is equipped with a fault self-diagnostic voice system, which will announce faults when the electric motor fails, facilitating fault diagnosis.
The vehicle provides voice prompts during turns, making it more efficient and safer to use.
Machine Performance: Combining suction, sweeping, and spraying, effectively suppressing dust and thoroughly cleaning ground debris and dust.
모델 | TJ-G25AT | Battery capacity | 60V200Ah |
Sweeping width | 2500밀리미터 | Drive motor | 3000W |
Main brush width | 800밀리미터 | Suction motor | 5000W |
Side brush diameter | Front 700mm Middle 600mm | side-brush motor | 4*100W |
working efficiency | 30000m² / h | Walking speed | 0-14km/h |
working hours | 3-8h | Tyre type | Front 400-10, rear 400-10 solid tyre |
Dustbin capacity | 240L | Vacuum filtration area | 20m² |
water tank | 300L | Overall dimensions | 366*240*220센티미터 |
control mode | Intelligent control system (timed dust shaking function) | ||
Headlight | Four way LED headlights | ||
tail light | Steering+braking+driving integrated taillights | ||
Alarm lamp | Top operation warning light | ||
HD reverse camera | |||
High pressure water-gun range | 10-18m | ||
power | 1500W | ||
Pressure range | 0-13Mpa | ||
Max rate of flow | 11L/min |
